Komori Lithrone 40 13.9mm
Komori Lithrone 40 13.9mm
Rilsan rollers are available for any sort of specification required. The quality of printing matter depends very much on the right distribution and transport of printing ink. The quality of the covering on the printing rollers is a very important factor that should not be underestimated. Like many manufacturers of printing presses, we recommend Rilsan rollers because it has excellent resistance to chemical influences of printing ink. The absorption of water and ink is very low and the surface is very smooth and durable.

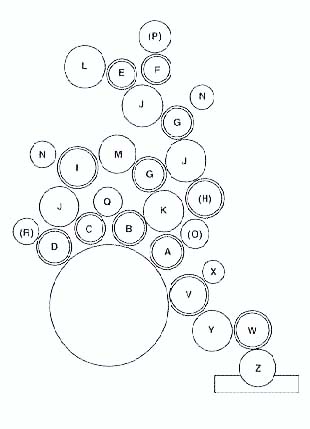

| Inker Position | Oerering Number | Set. Q | Length | DIA. | Total Length |
|---|---|---|---|---|---|
| A Form | L40-13.9-A | 1 | 1036 | 87.5 | 1102 |
| B Form | L40-13.9-B | 1 | 1036 | 77.5 | 1114 |
| C Form | L40-13.9-C | 1 | 1036 | 85 | 1102 |
| D Form | L40-13.9-D | 1 | 1036 | 90 | 1114 |
| E Ductor | L40-NA--E | 1 | 1036 | 64 | 1122 |
| F Distributor | L40-13.9-F | 2 | 1036 | 75 | 1098 |
| G Distributor | L40-13.9-G | 2 | 1036 | 70 | 1026 |
| H Distributor | L40-13.9-H | 1 | 1036 | 85 | 1147 |
| S Distributor | L40-13.9-S | 1 | 1036 | 87 | 1147 |
| P Distributor | L40-13.9-P | 1 | 1036 | 55 | 1036 |
| Komorimatic Continuous Dampening System | |||||
| V Water Form | L40-1112-V | 1 | 1042 | 102 | 1112 |
| V Water Form | L40-1150-V | 1 | 1142 | 101 | 1150 |
| V Water Form | L40-1168-V | 1 | 1142 | 101 | 1168 |
| W Water Form | L40-NA-W | 1 | 1112 | 88 | 1205 |
| Speciality Rollers | |||||
| A Form Hickey | L40-13.9-AHP | 1 | 1036 | 87.5 | 1102 |
| Optional Rollers | |||||
| B Cocking Form | L40-NA-BCkg | 1 | 1036 | 77.5 | 1102 |
| D Cocking Form | L40-NA-DCkg | 1 | 1036 | 90 | 1114 |
| Blankets | |||||
| Blanket Size | 36.50x41 | ||||
| Blanket Bars (Set): If applicable order per your specification. |
|||||
| Underblanket: If applicable order per your specification. | |||||
| Packing Dimensions: 29.72x40.55 | |||||
| Plate Dimensions: 31.50x40.55 | |||||
Our policy of continuous improvement and commitment to quality results from our steadfast belief that quality is a basic necessity and not an achievement.
